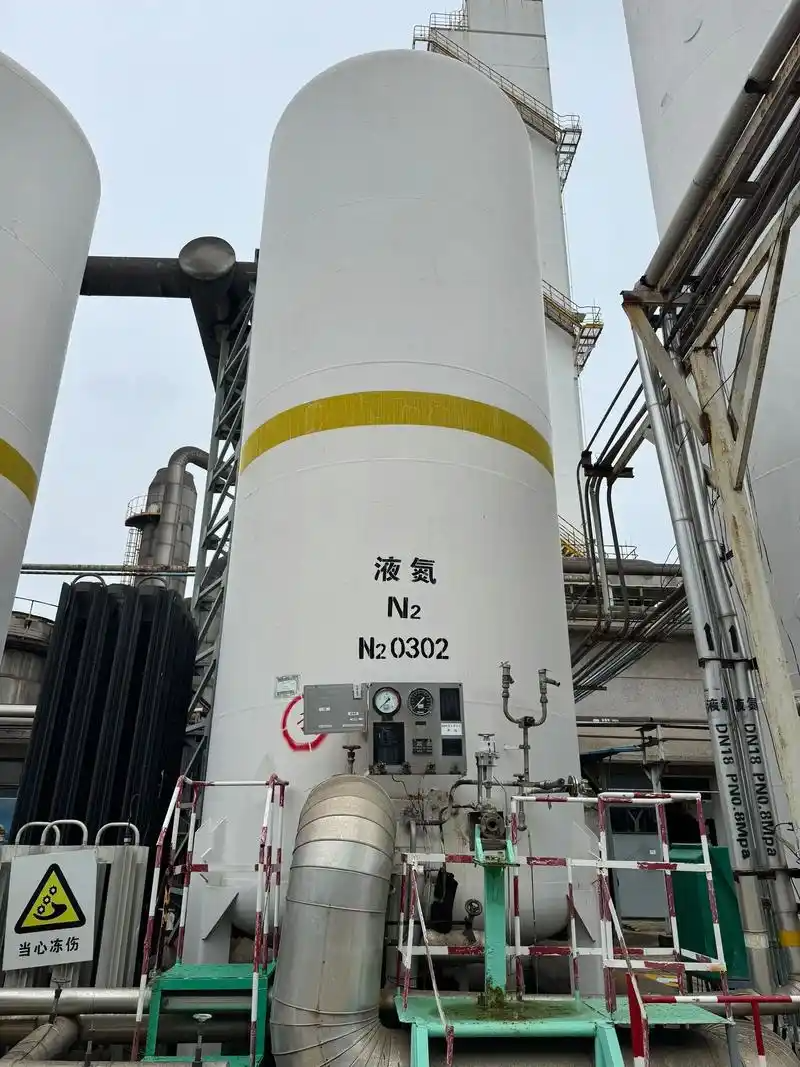

Cryogenic Liquid Storage Tank Basic Configuration
2025-09-29 14:50our factory can manufacture cryogenic liquid storage tank, I will introduce some knowlegde about the cryogenic liquid stoarge tank in the following article.
the following is the basic configuration for cryogenic liquid stoarge tank for your reference, if you have any question, please contact at mobile, wechat & whatsapp: +86-13941519279 for more information or cooperation.
Configuration list of cryogenic liquid storage tank (20/1.6）
No. | Name | Specification | Material | Quan. |
1 | Spinning card holder | KF-40 | 304 | 1 |
2 | Residual liquid discharge valve | DN10 | 304 | 1 |
3 | Top inlet valve | DN40 | 304 | 1 |
4 | Bottom inlet valve | DN40 | 304 | 2 |
5 | Dewar bottle valve | DN15 | 304 | 1 |
6 | Boost shut-off valve | DN25 | 304 | 1 |
7 | Boosting main valve | DN25 | 304 | 1 |
8 | Safety valve | DN15 | Assembly component | 1 |
9 | Pressure regulating valve | DN25 | 304 | 1 |
10 | Booster | 35Nm3/h | 6063-T5 | 1 |
11 | Full valve | DN15 | 304 | 1 |
12 | Return valve | DN20 | 304 | 1 |
13 | Discharge valve | DN40 | 304 | 2 |
14 | Vent valve | DN40 | 304 | 1 |
15 | 3 way switching valve | DN25 | 304 | 1 |
16 | Safety valve | DN25 | Assembly component | 2 |
17 | Vacuum valve | DN50 | S.S. | 1 |
18 | Combination vacuum gauge | M007G | Assembly component | 1 |
19 | Differential pressure level gauge | X-DLG | Assembly component | 1 |
20 | Pressure gauge | 0～2.5 MPa | Assembly component | 1 |
21 | Instrument valve | DN6 | 304 | 2 |
22 | Safety release device | DN100 | Assembly component | 1 |
